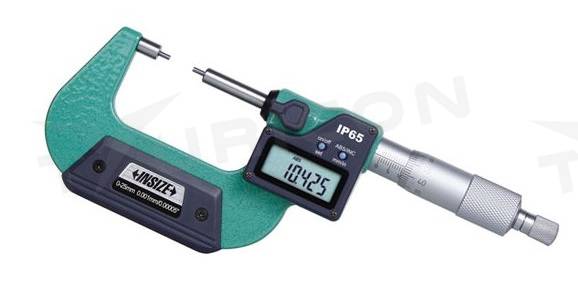

Digital micrometer with extra thin measuring surfaces INSIZE
Waterproof digital micrometer with carbide thin measuring surfaces with 0.001 mm digital step for measuring shafts, holes and grooves from INSIZE. Type A - extra thin carbide tips. Type B - carbide contacts.
IP 65 protection
supplied with setting standards
| Range/mm | Type | Accuracy/mm | L/mm | b/mm | Kód | Poptávka |
|---|---|---|---|---|---|---|
| 0-25 | A | +/-0,004 | 57 | 32 | 3533-25A | |
| 25-50 | A | +/-0,004 | 82 | 44,5 | 3533-50A | |
| 50-75 | A | +/-0,005 | 107 | 57 | 3533-75A | |
| 75-100 | A | +/-0,005 | 132,6 | 69,5 | 3533-100A | |
| 100-125 | A | +/-0,006 | 158 | 82 | 3533-125A | |
| 125-150 | A | +/-0,006 | 183,4 | 94,5 | 3533-150A | |
| 150-175 | A | +/-0,007 | 208,8 | 107 | 3533-175A | |
| 0-25 | B | +/-0,004 | 57 | 32 | 3533-25BA | |
| 25-50 | B | +/-0,004 | 82 | 44,5 | 3533-50BA | |
| 50-75 | B | +/-0,005 | 107 | 57 | 3533-75BA | |
| 75-100 | B | +/-0,005 | 132,6 | 69,5 | 3533-100BA | |
| 100-125 | B | +/-0,006 | 158 | 82 | 3533-125BA | |
| 125-150 | B | +/-0,006 | 183,4 | 94,5 | 3533-150BA | |
| 150-175 | B | +/-0,007 | 208,8 | 107 | 3533-175BA |
