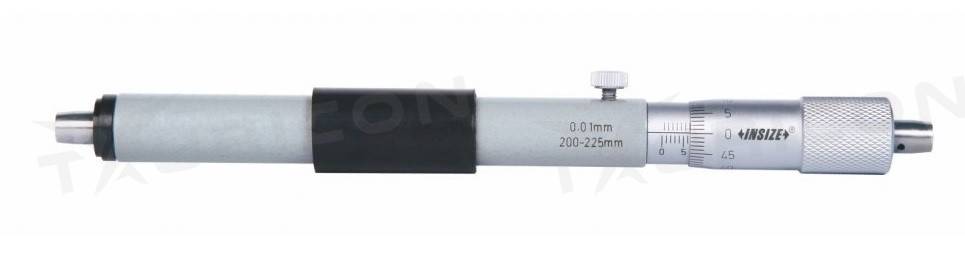

Two-touch micrometric tap INSIZE
is a measuring tool used to measure internal dimensions such as hole and slot diameters.

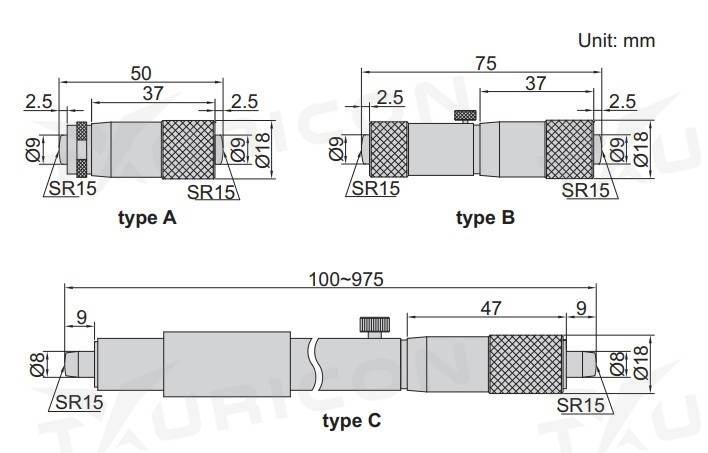

| Range/mm | Accuracy | Type | Kód | Poptávka |
|---|---|---|---|---|
| 50-75mm | 5µm | A | 3229-75 | |
| 75-100mm | 5µm | B | 3229-100 | |
| 100-125mm | 6µm | C | 3229-125 | |
| 125-150mm | 6µm | C | 3229-150 | |
| 150-175mm | 7µm | C | 3229-175 | |
| 175-200mm | 7µm | C | 3229-200 | |
| 200-225mm | 8µm | C | 3229-225 | |
| 225-250mm | 8µm | C | 3229-250 | |
| 250-275mm | 9µm | C | 3229-275 | |
| 275-300mm | 9µm | C | 3229-300 | |
| 300-325mm | 9µm | C | 3229-325 | |
| 325-350mm | 9µm | C | 3229-350 | |
| 350-375mm | 10µm | C | 3229-375 | |
| 375-400mm | 10µm | C | 3229-400 | |
| 400-425mm | 10µm | C | 3229-425 | |
| 425-450mm | 10µm | C | 3229-450 | |
| 450-475mm | 11µm | C | 3229-475 | |
| 475-500mm | 11µm | C | 3229-500 | |
| 500-525mm | 11µm | C | 3229-525 | |
| 525-550mm | 11µm | C | 3229-550 | |
| 550-575mm | 11µm | C | 3229-575 | |
| 575-600mm | 12µm | C | 3229-600 | |
| 600-625mm | 12µm | C | 3229-625 | |
| 625-650mm | 12µm | C | 3229-650 | |
| 650-675mm | 13µm | C | 3229-675 | |
| 675-700mm | 13µm | C | 3229-700 | |
| 700-725mm | 13µm | C | 3229-725 | |
| 725-750mm | 14µm | C | 3229-750 | |
| 750-775mm | 14µm | C | 3229-775 | |
| 775-800mm | 14µm | C | 3229-800 | |
| 800-825mm | 15µm | C | 3229-825 | |
| 825-850mm | 15µm | C | 3229-850 | |
| 850-875mm | 15µm | C | 3229-875 | |
| 875-900mm | 16µm | C | 3229-900 | |
| 900-925mm | 16µm | C | 3229-925 | |
| 925-950mm | 16µm | C | 3229-950 | |
| 950-975mm | 17µm | C | 3229-975 | |
| 975-1000mm | 17µm | C | 3229-1000 |
