Analog depth gauge - standard design INSIZE

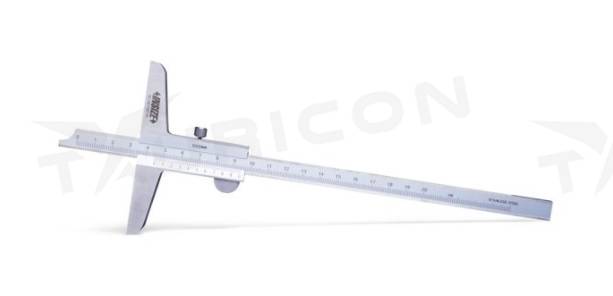

Mechanical depth gauge INSIZE
Mechanical depth gauge for measuring the depth of grooves and holes.
Stainless steel
Třída:
Economy line

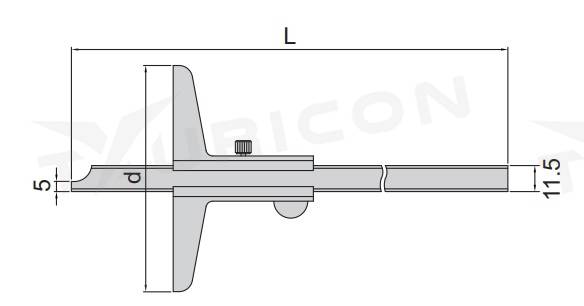

| Range/mm | Scale division/mm | Accuracy/mm | L/mm | d/mm | Kód | Poptávka |
|---|---|---|---|---|---|---|
| 0-150 | 0,05 | +/-0,05 | 245 | 100 | 1240-150 | |
| 0-200 | 0,05 | +/-0,05 | 282 | 100 | 1240-200 | |
| 0-300 | 0,05 | +/-0,08 | 382 | 100 | 1240-300 | |
| 0-1500 | 0,02 | +/-0,03 | 245 | 100 | 1240-1501 | |
| 0-200 | 0,02 | +/-0,03 | 282 | 100 | 1240-2001 | |
| 0-300 | 0,02 | +/-0,04 | 382 | 100 | 1240-3001 | |
| 0-500 | 0,02 | +/-0,05 | 585 | 150 | 1240-5001 |
