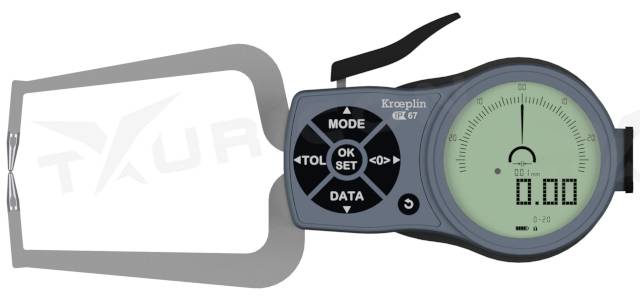

Kroeplin deflection gauge with arms for external measurement K220
K220
Kroeplin deflection gauge with arms for external measurement is suitable for measuring the thickness of various materials.
Professional thickness gauge.
Measurement of hard-to-reach places enables the variability of measuring arms and touches.

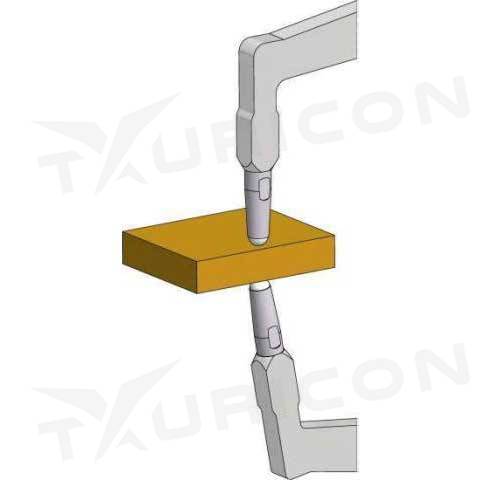

Measurement of external grooves, measurement of external keyways, measurement of external recesses, measurement of various surfaces.

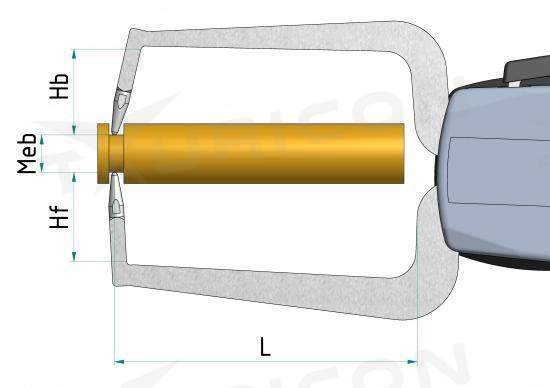

Measuring range Meb: 0 - 20 mm
Numerical interval Zw: 0.001 / 0.002 / 0.005 / 0.01 / 0.02 / 0.05 mm
Measuring depth L max.: 85 mm
Hf = 24,6
Hb = 24,7 mm
For more detailed specifications, click on the PDF file or on the images.
Třída:
Professional line
